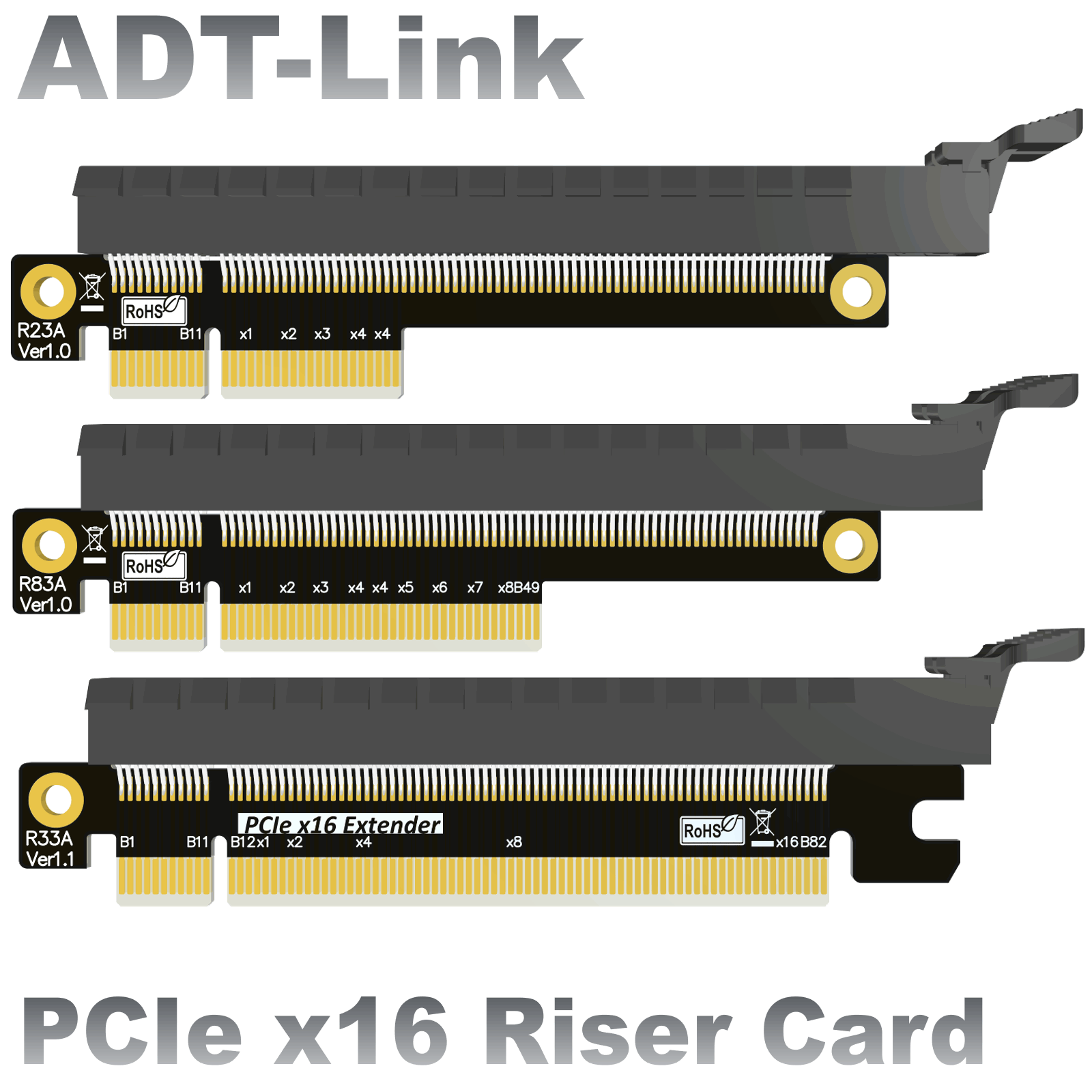

PCIe x16 x8 x4 male to x16 female riser card

Brand name: ADT-LINK

Product name: PCIe x16 x8 x4 male to x16 female riser card

Product model: R33A R83A R23A

Transfer speed: PCIe gen4 (Max.)

Weight: 20g

Application: PCIe x16 extension adapter Heightened test protection card


Part-Number Description:

Part-Number
Description
Speed
R33A-ADTPCIe x16 to x16 extension ADT connectorPCIe gen4x16 (Max.)

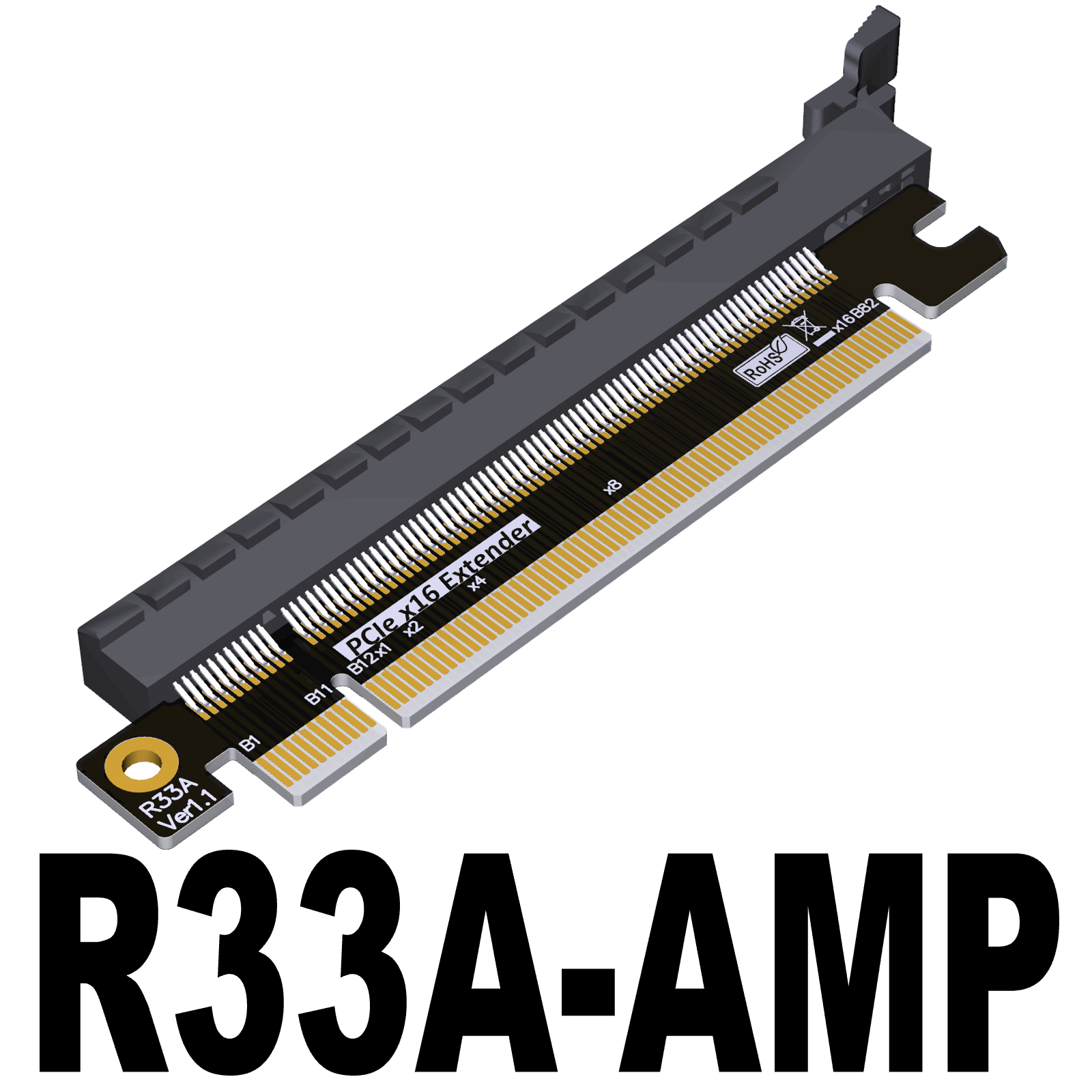

R33A-AMP
PCIe x16 to x16 extension Amphenol connector
PCIe gen4x16 (Max.)
R83A-ADT
PCIe x8 to x16 extension ADT connector
PCIe gen4x8 (Max.)

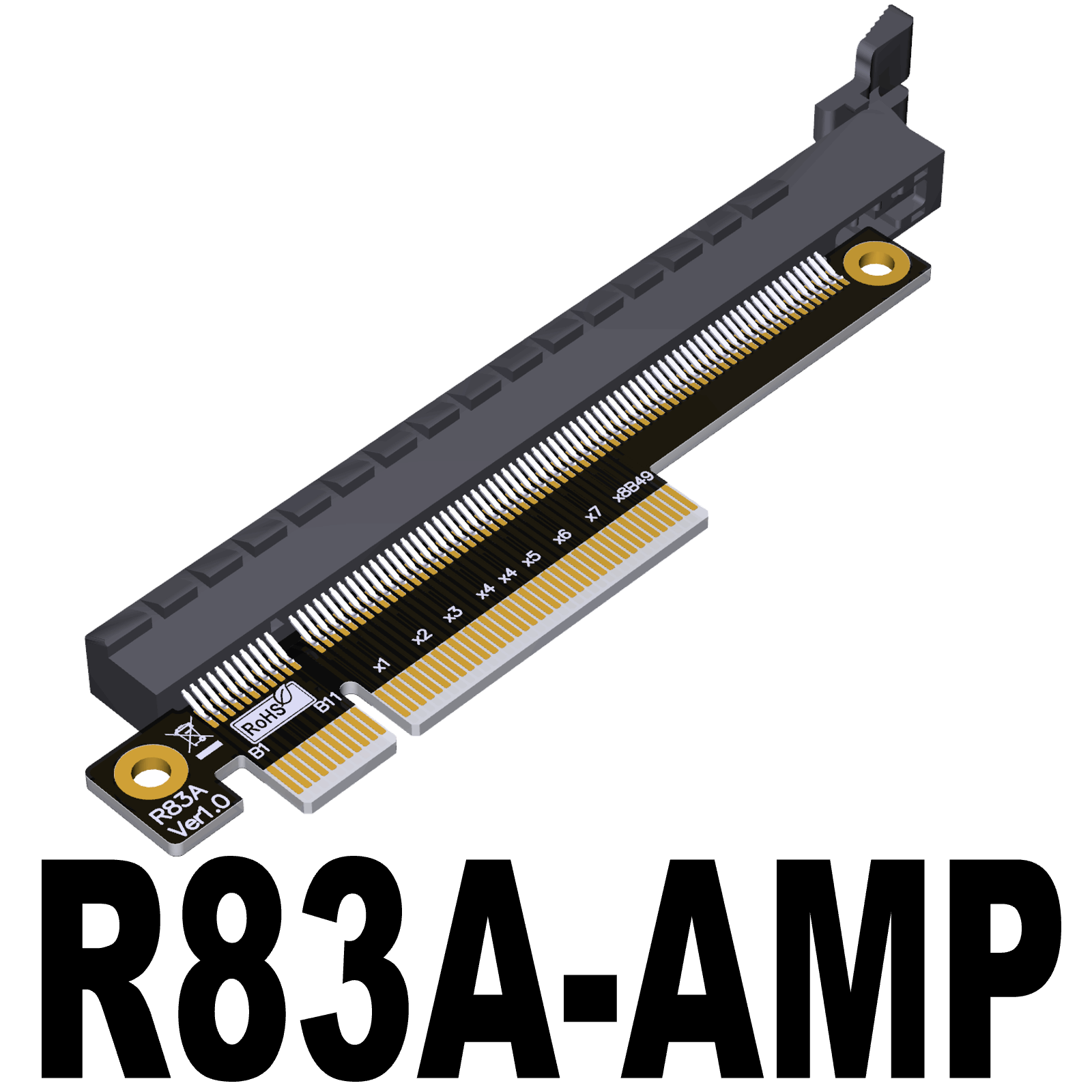

R83A-AMP
PCIe x8 to x16 extension Amphenol connector
PCIe gen4x8 (Max.)

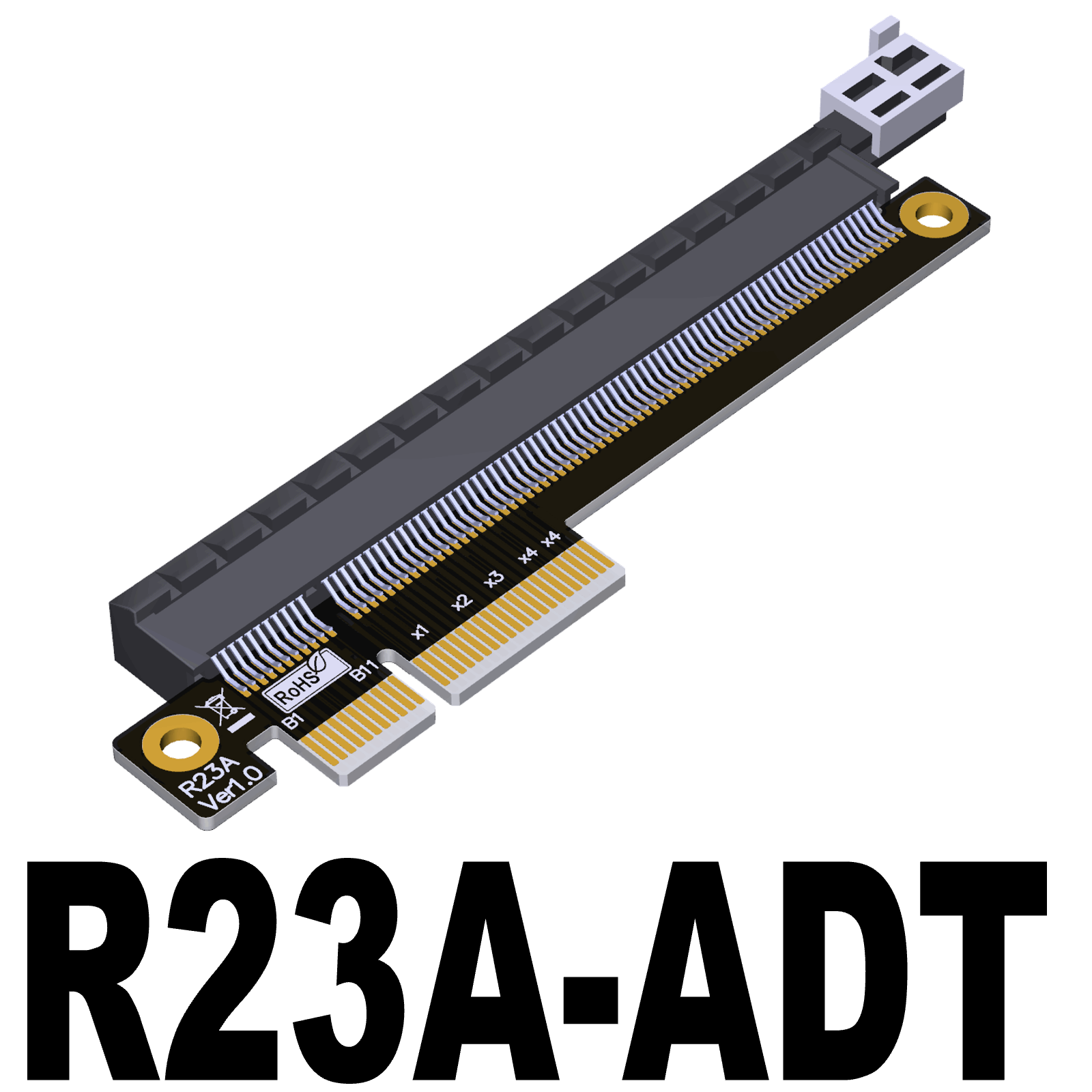

R23A-ADT
PCIe x4 to x16 extension ADT connector
PCIe gen4x4 (Max.)

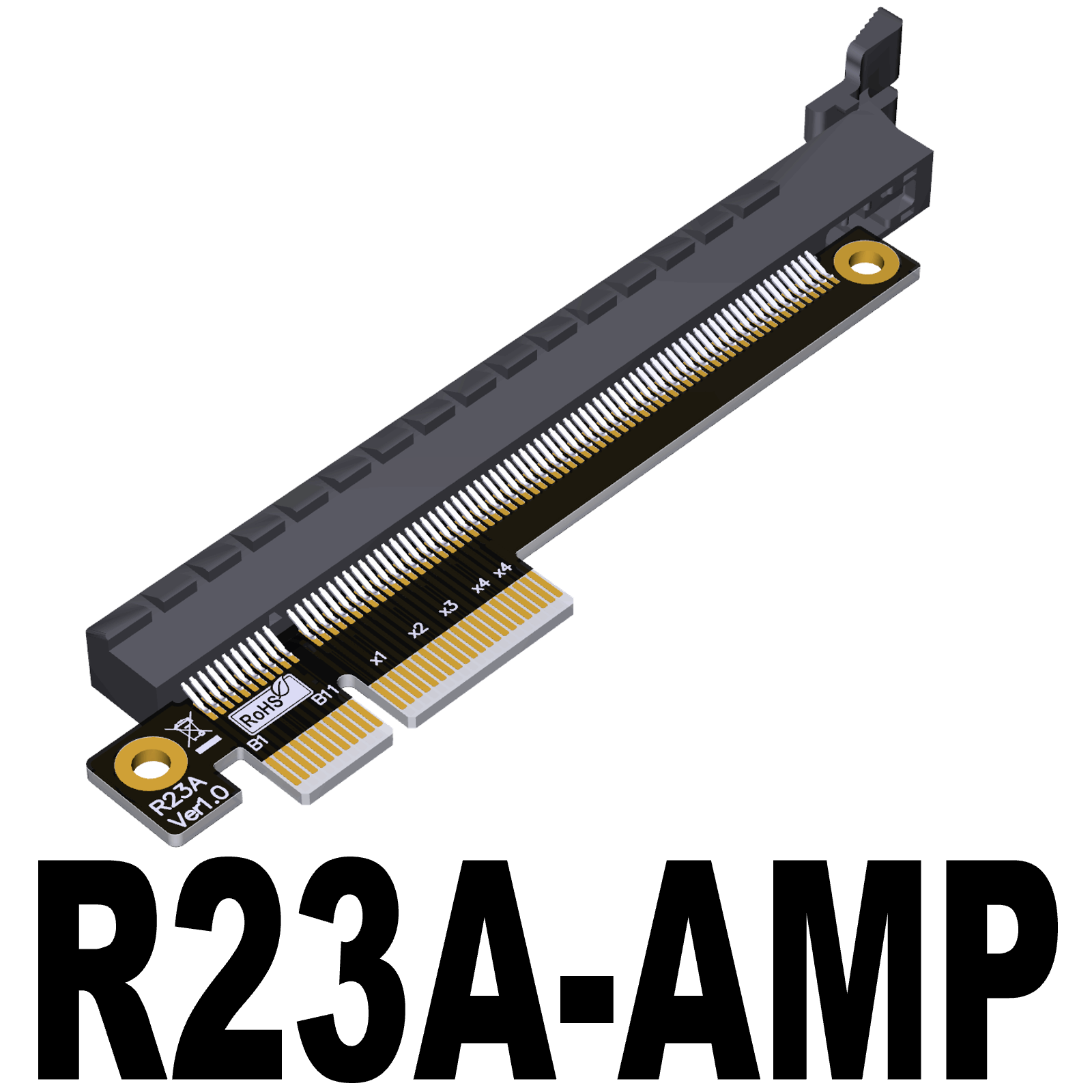

R23A-AMPPCIe x4 to x16 extension Amphenol connector
PCIe gen4x4 (Max.)


Features:

1. Support PCIE 4.0 X16 compatible with gen3/gen4
2. Gold finger gold plating process, gold thickness to 10u"
3. ADT self-designed custom connector, the terminal increases the gold thickness, LCP flame retardant high temperature plastic steel material, with buckle
4. High-frequency, low-resistance, high-temperature, and anti-oxidative PCB board, no deformation, color, citrine, translucent, white, or black
5. One-to-one pin definition, good compatibility

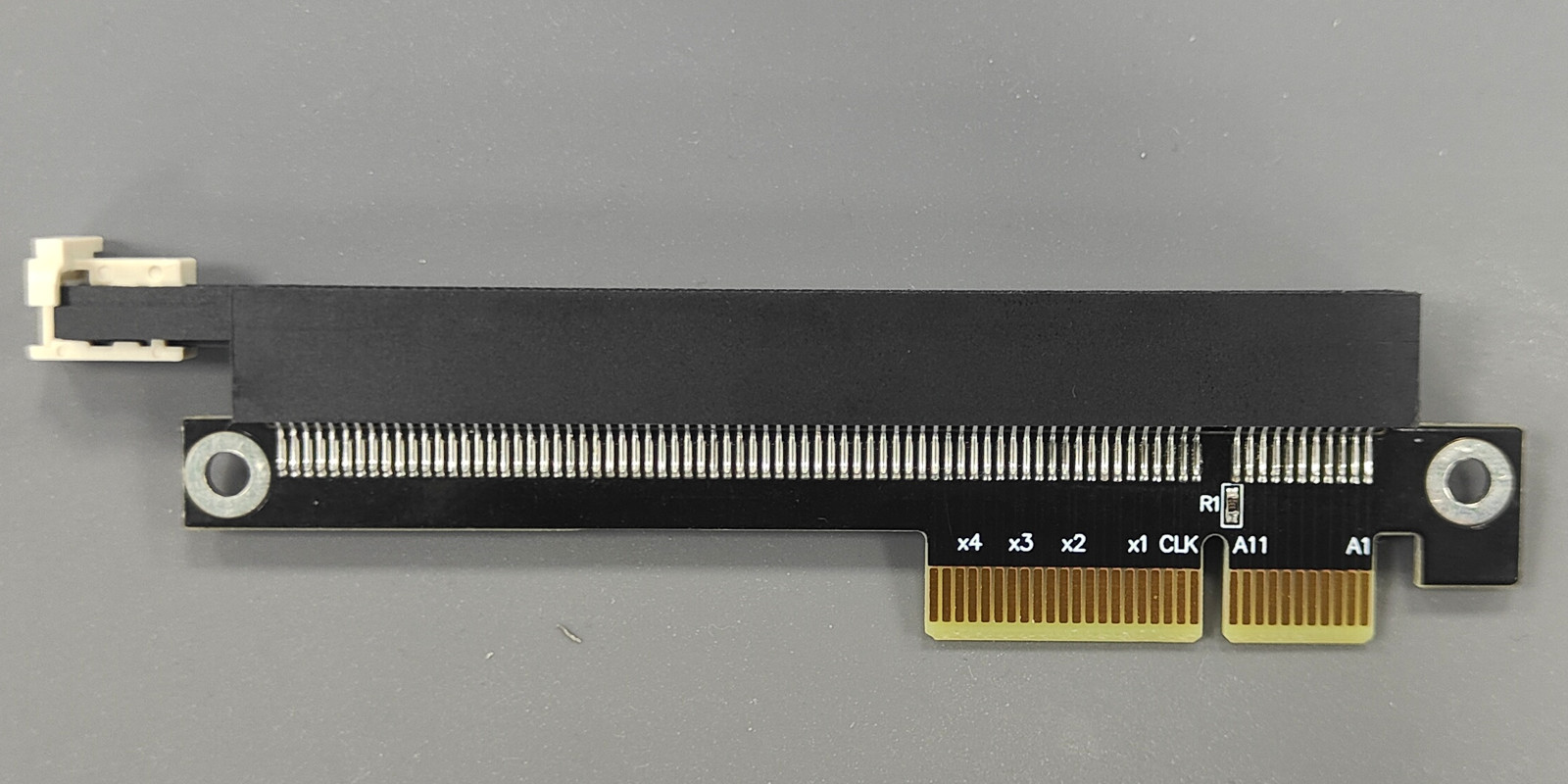

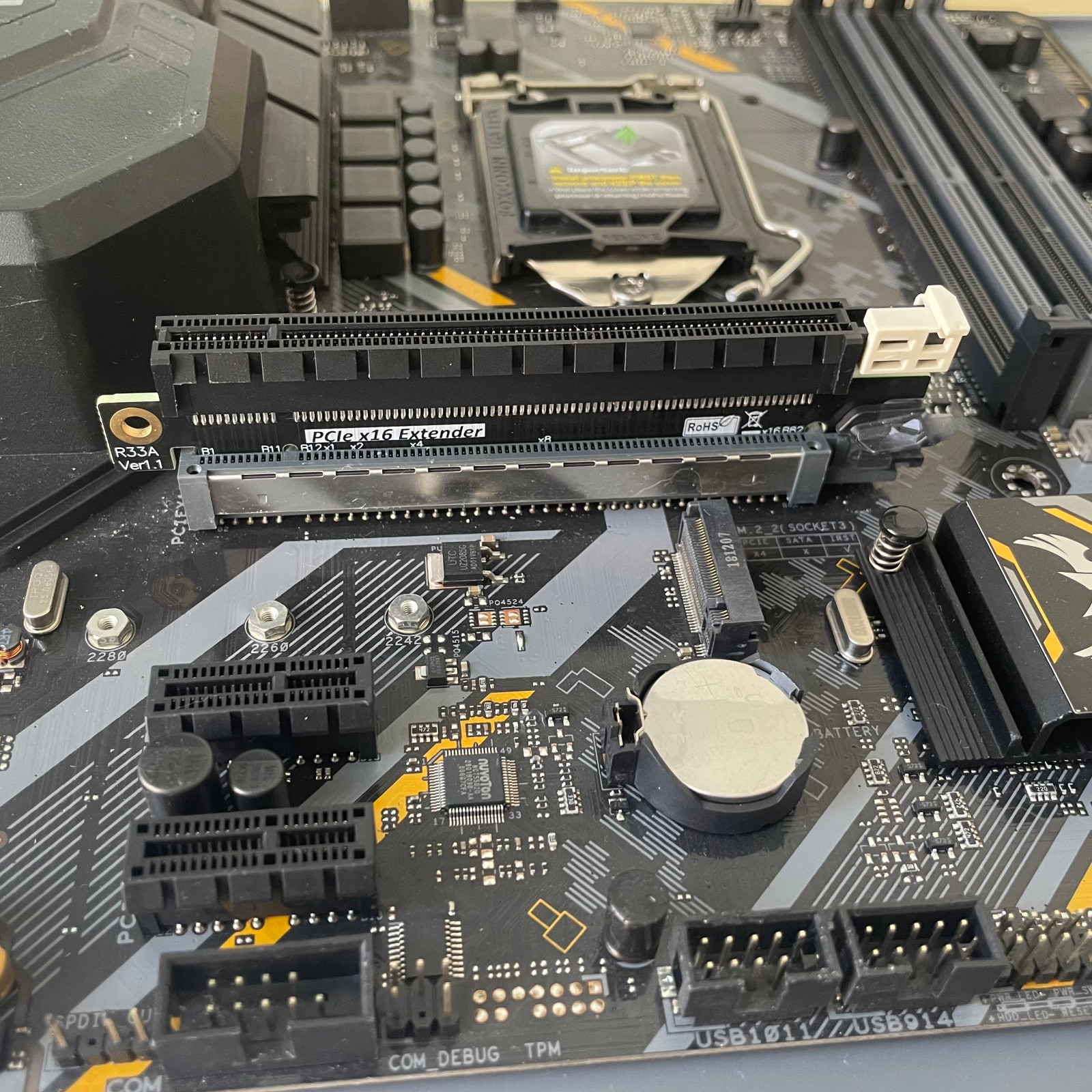

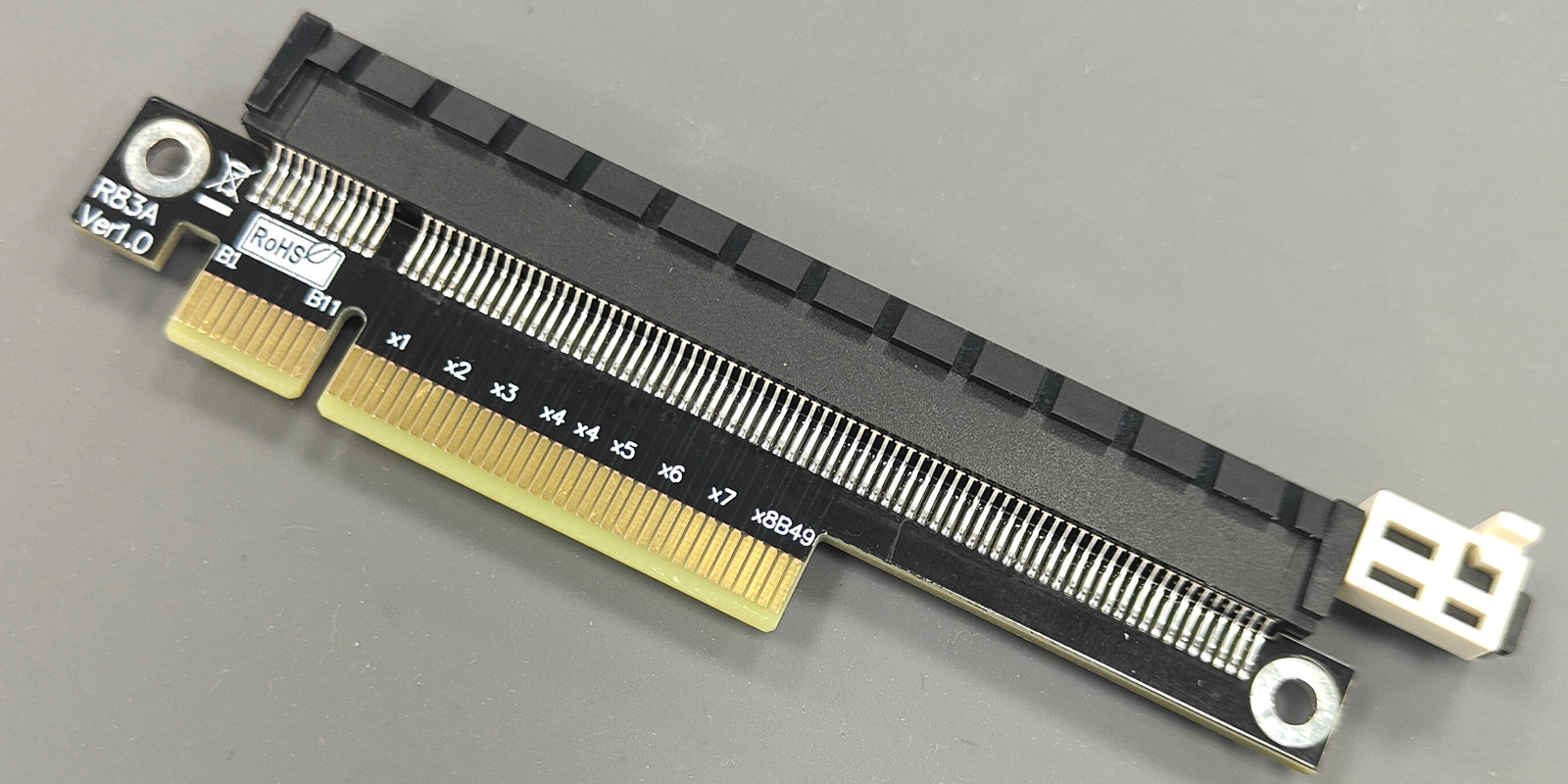

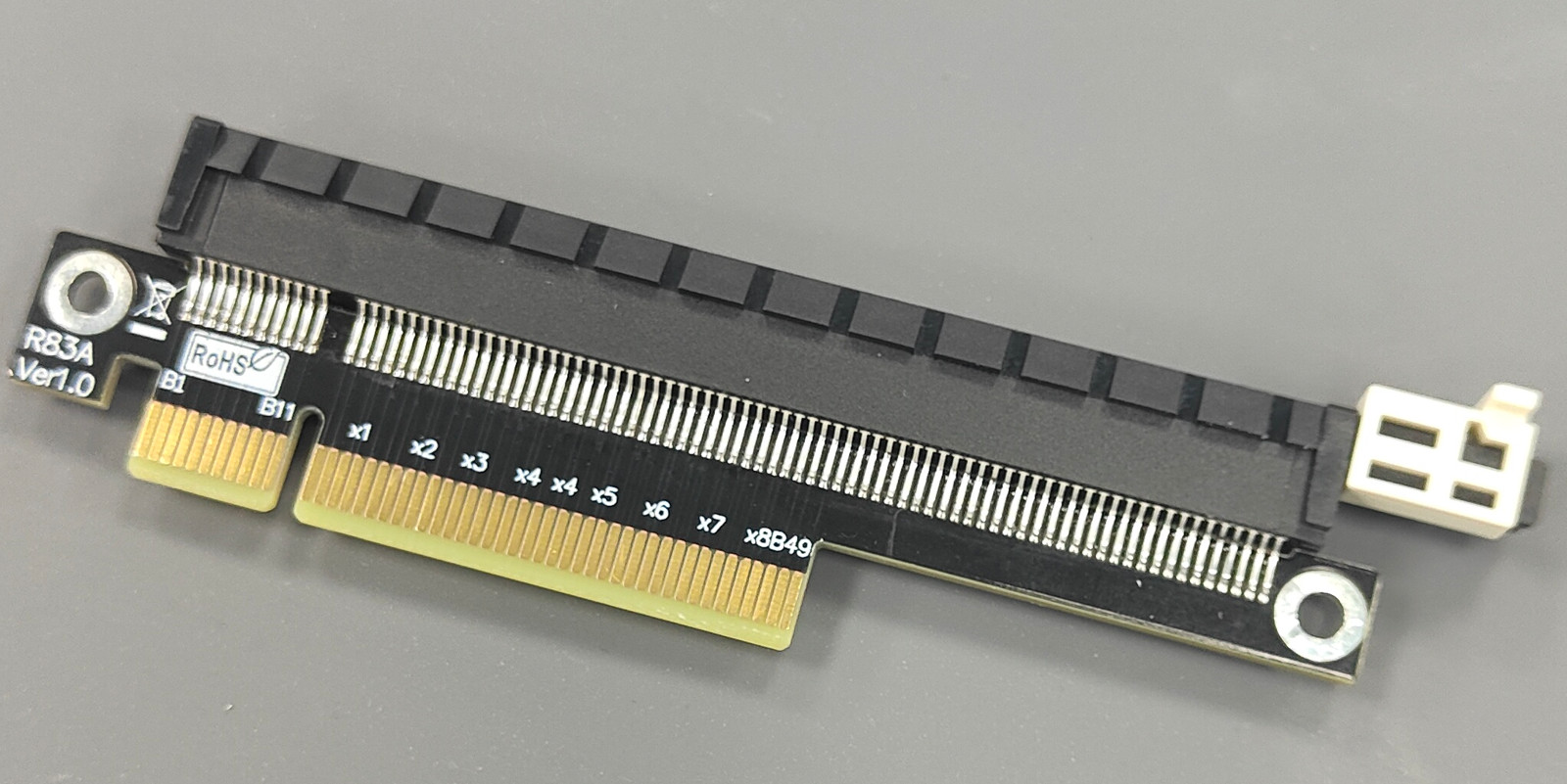

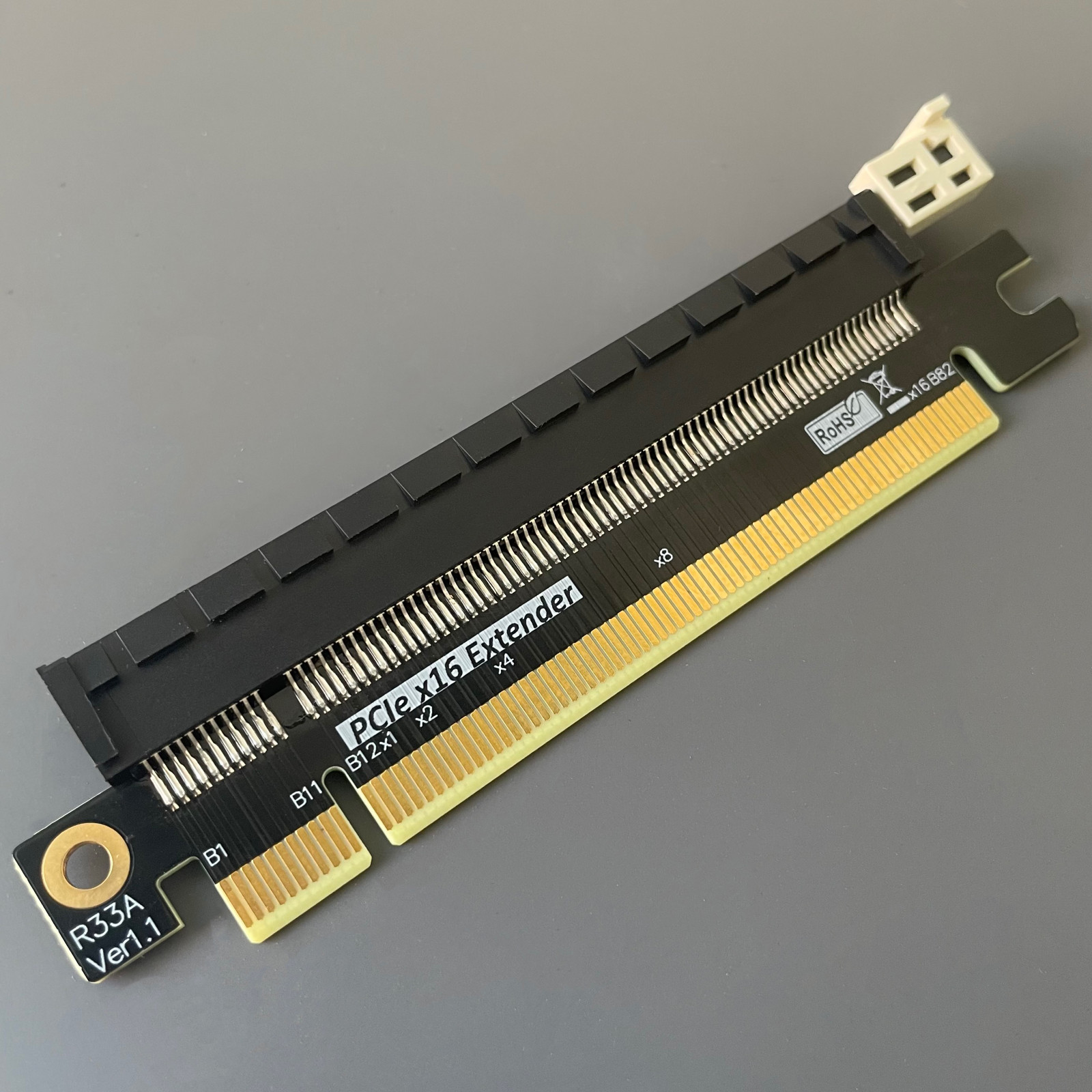

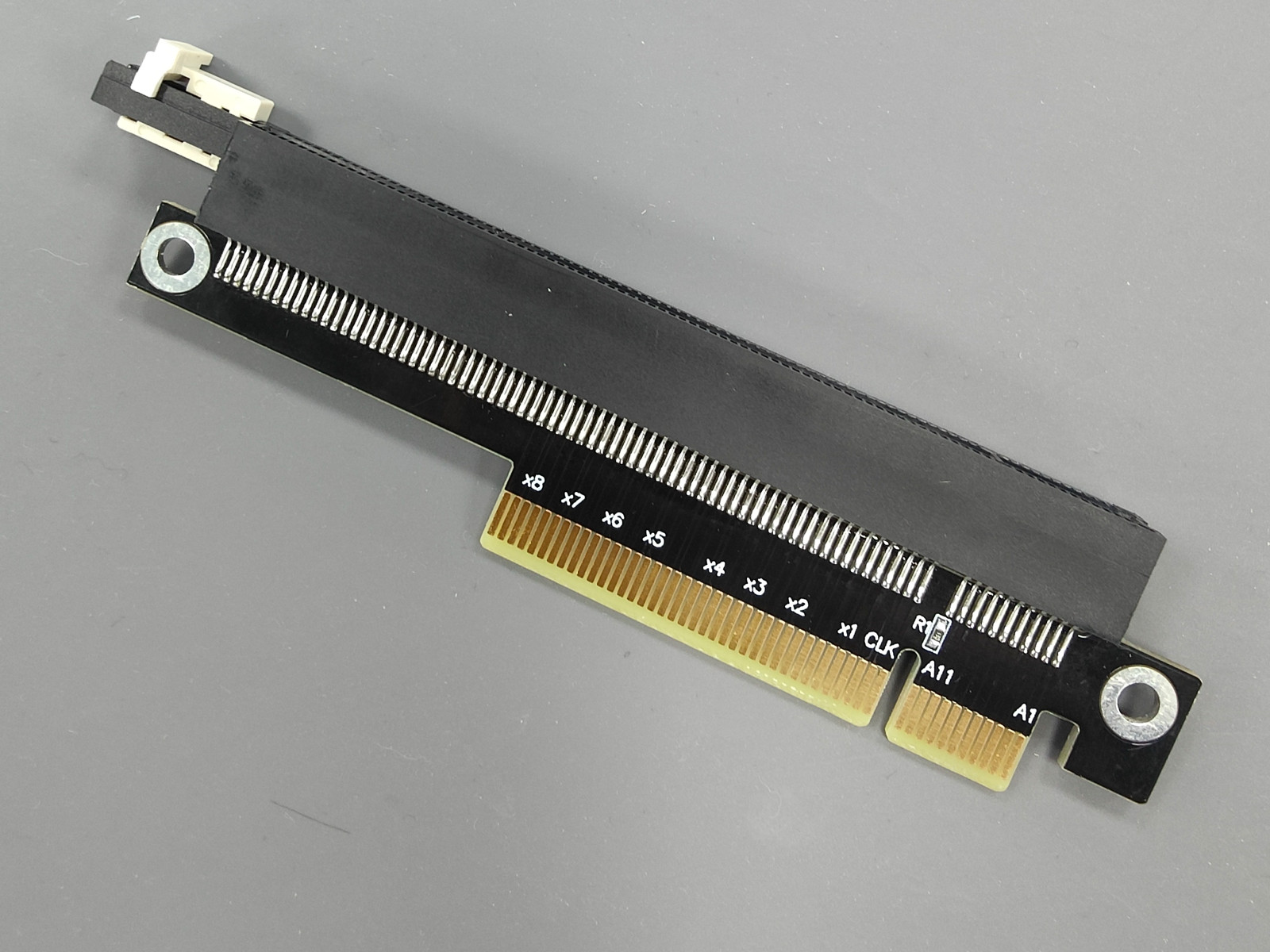

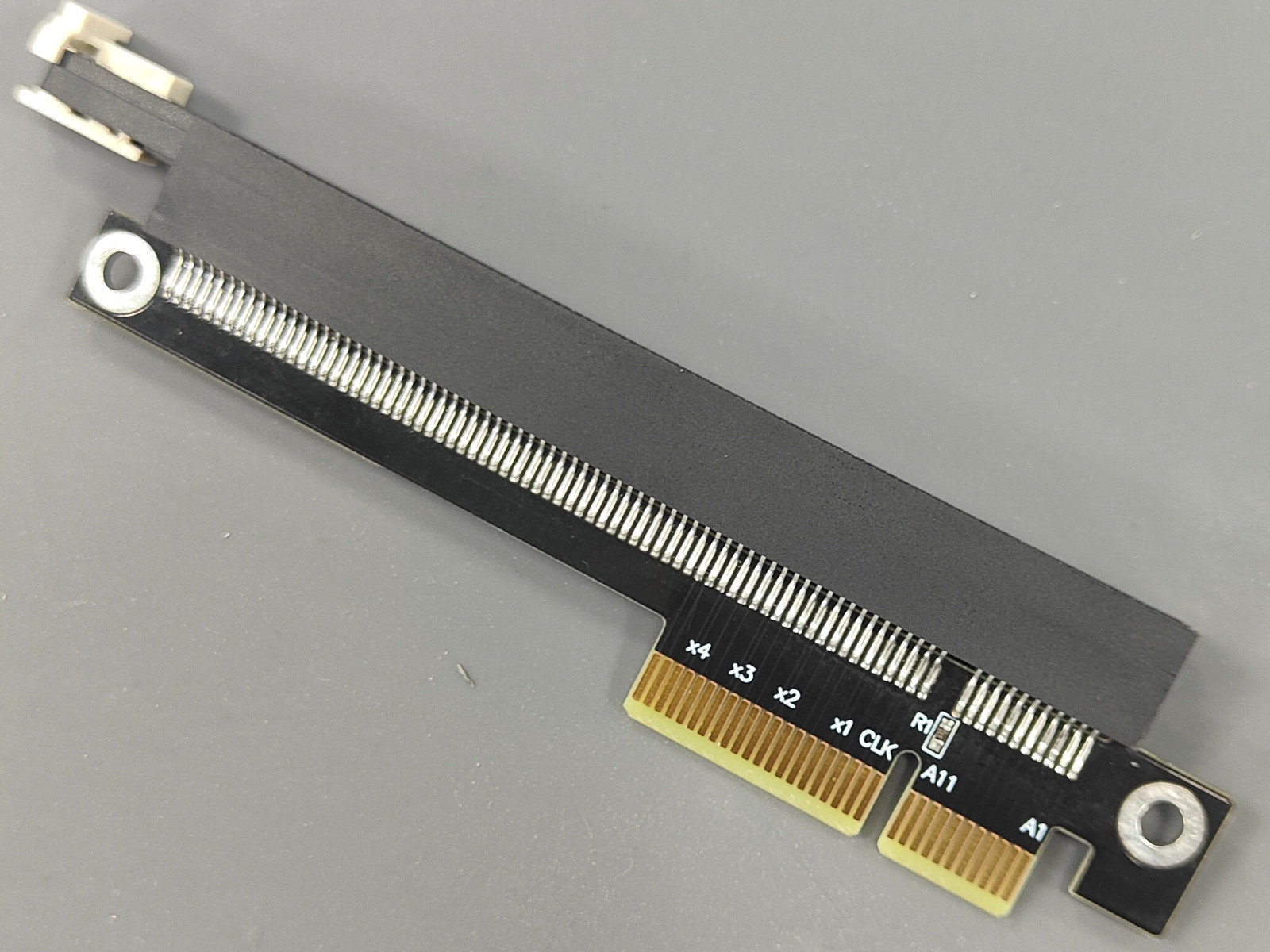

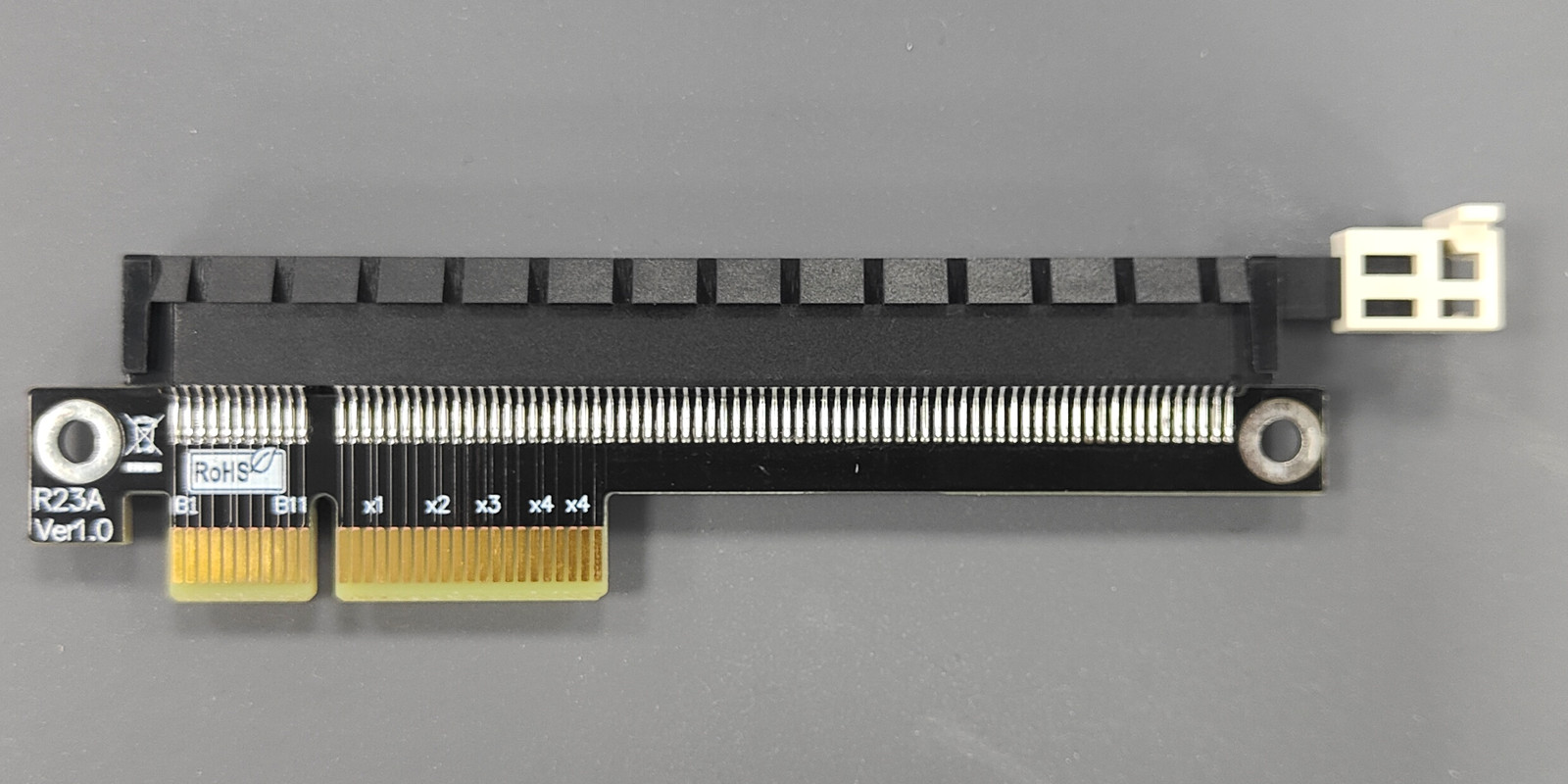

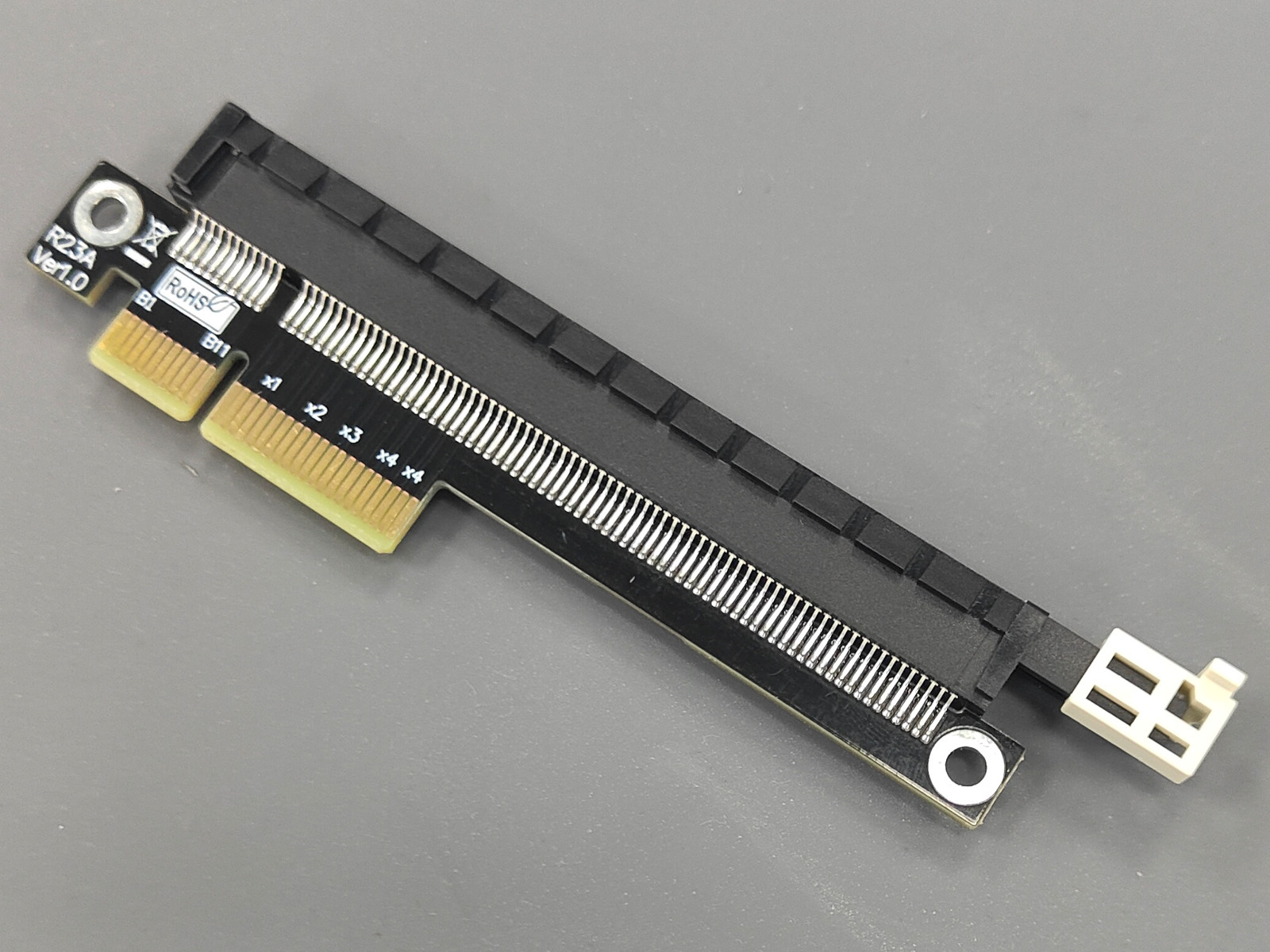

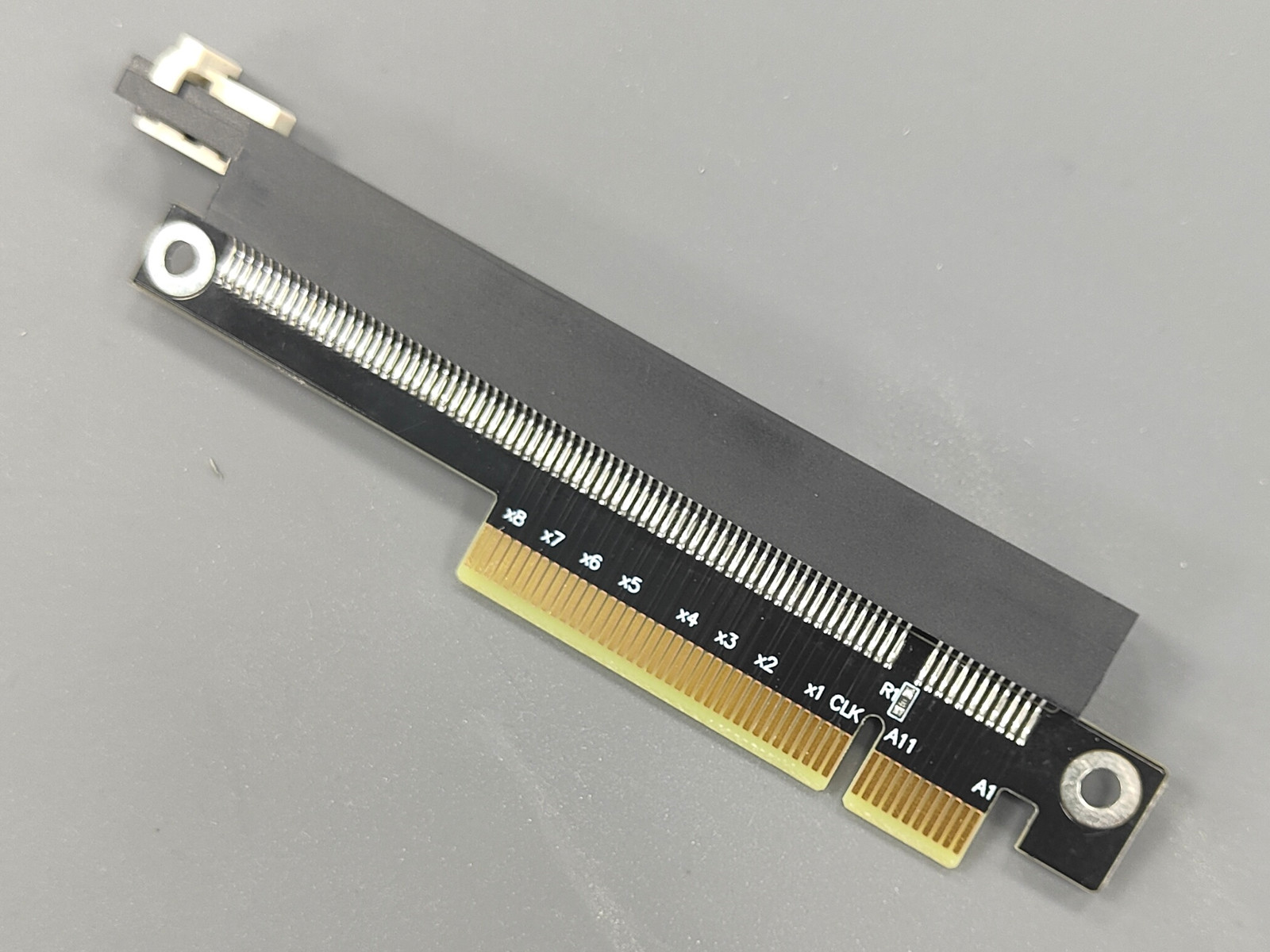

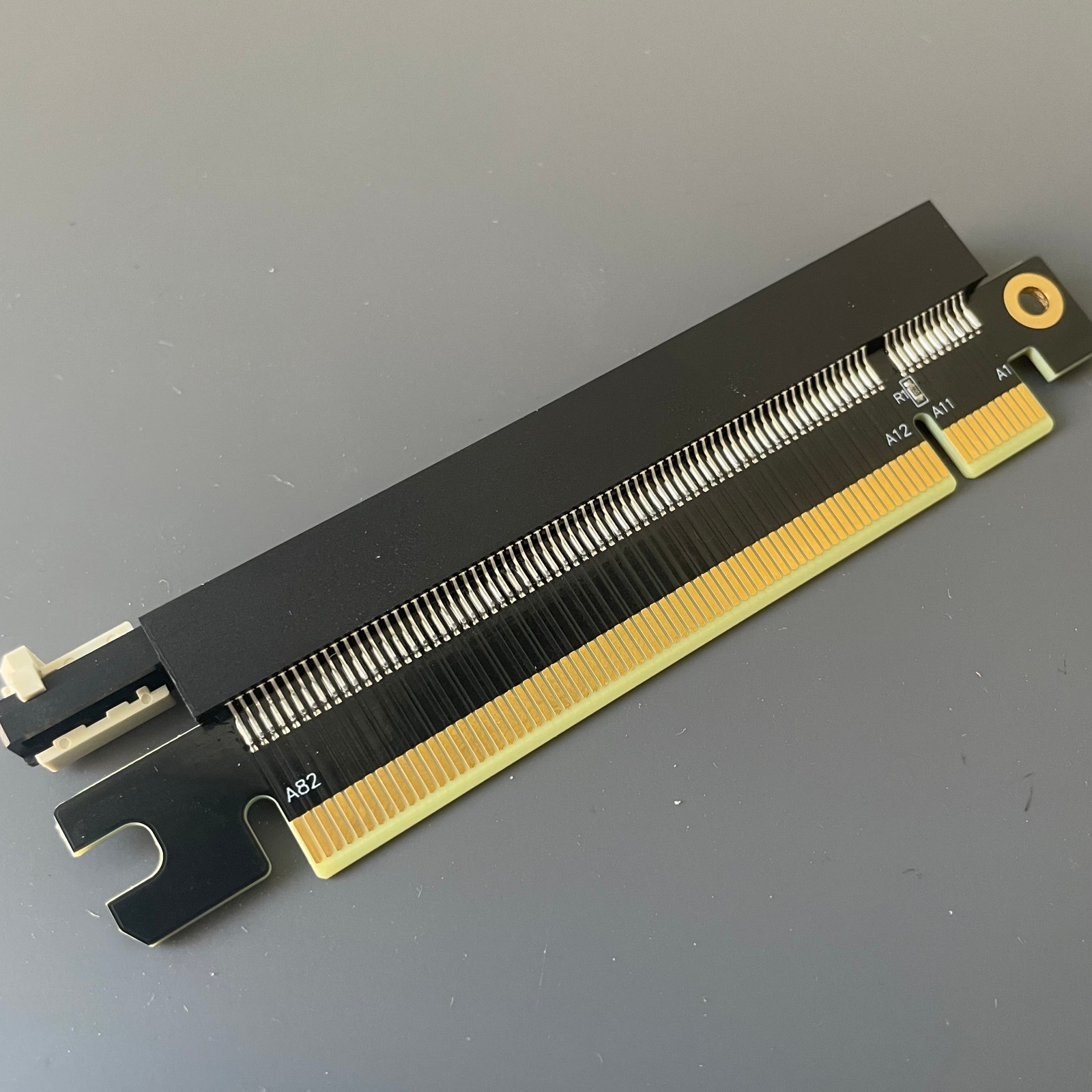

Photo:

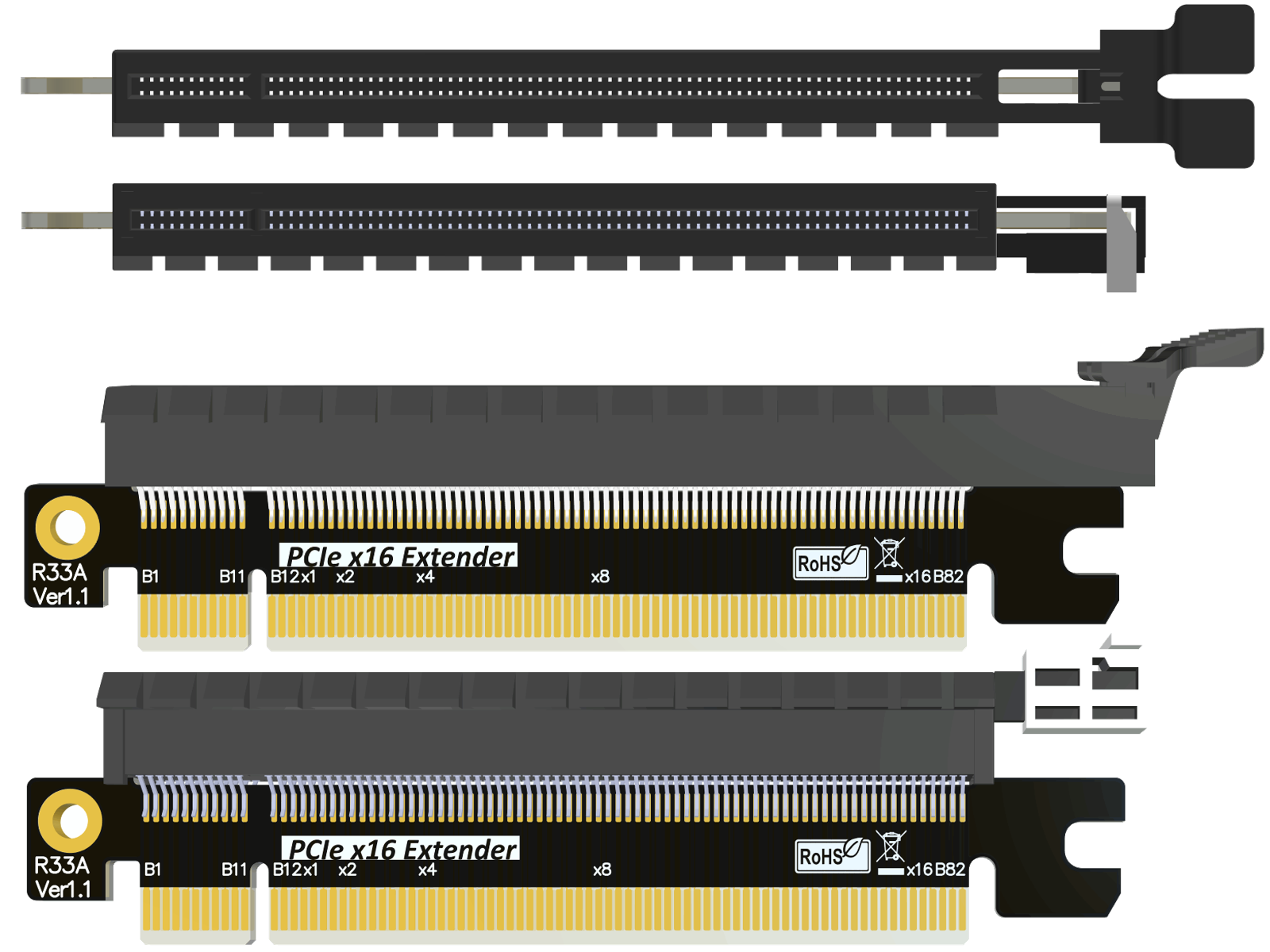

What is the difference between Amphenol and ADT custom connectors?
The main difference between American Amphenol imported connectors is the aircraft head buckle, and the connector complies with UL safety certification.

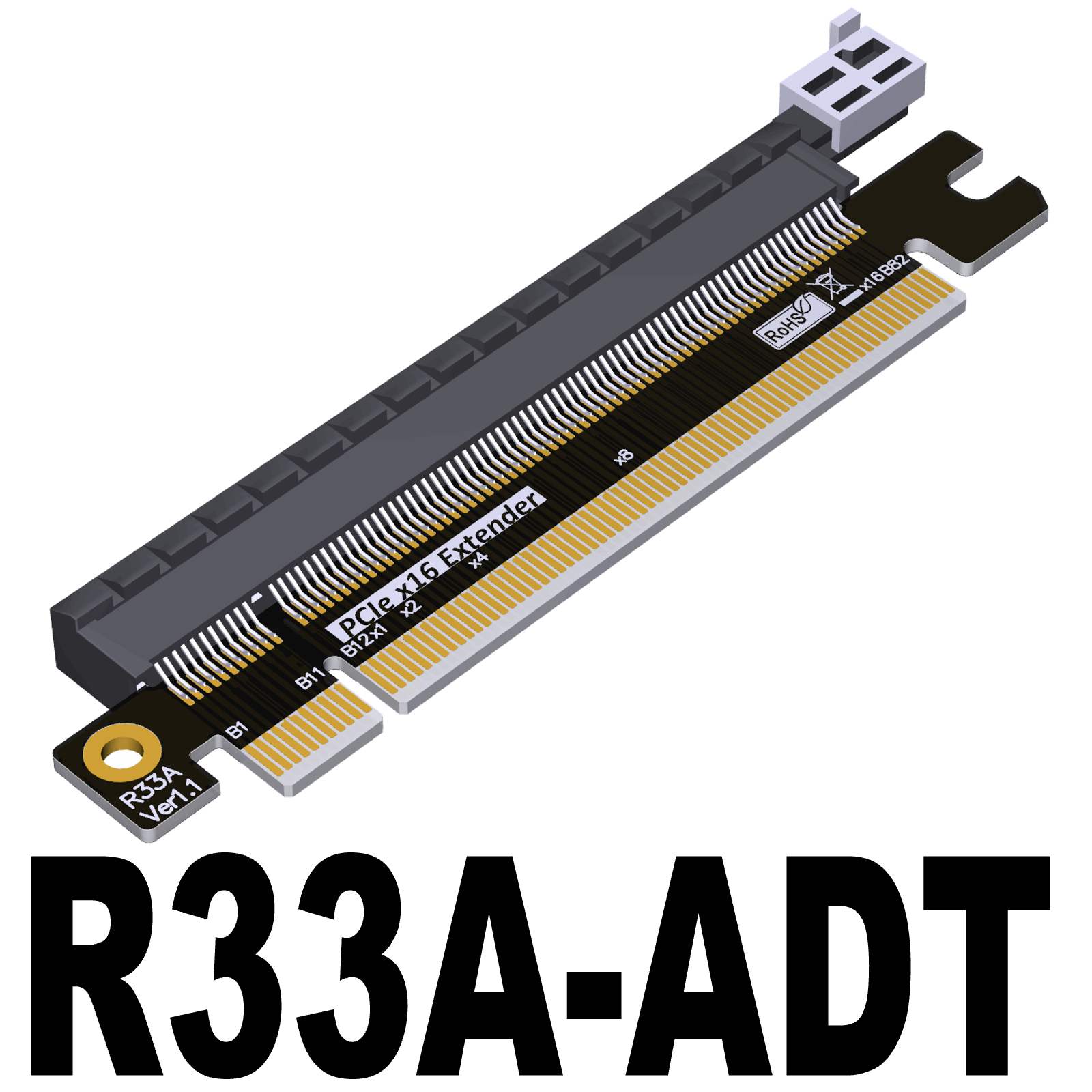

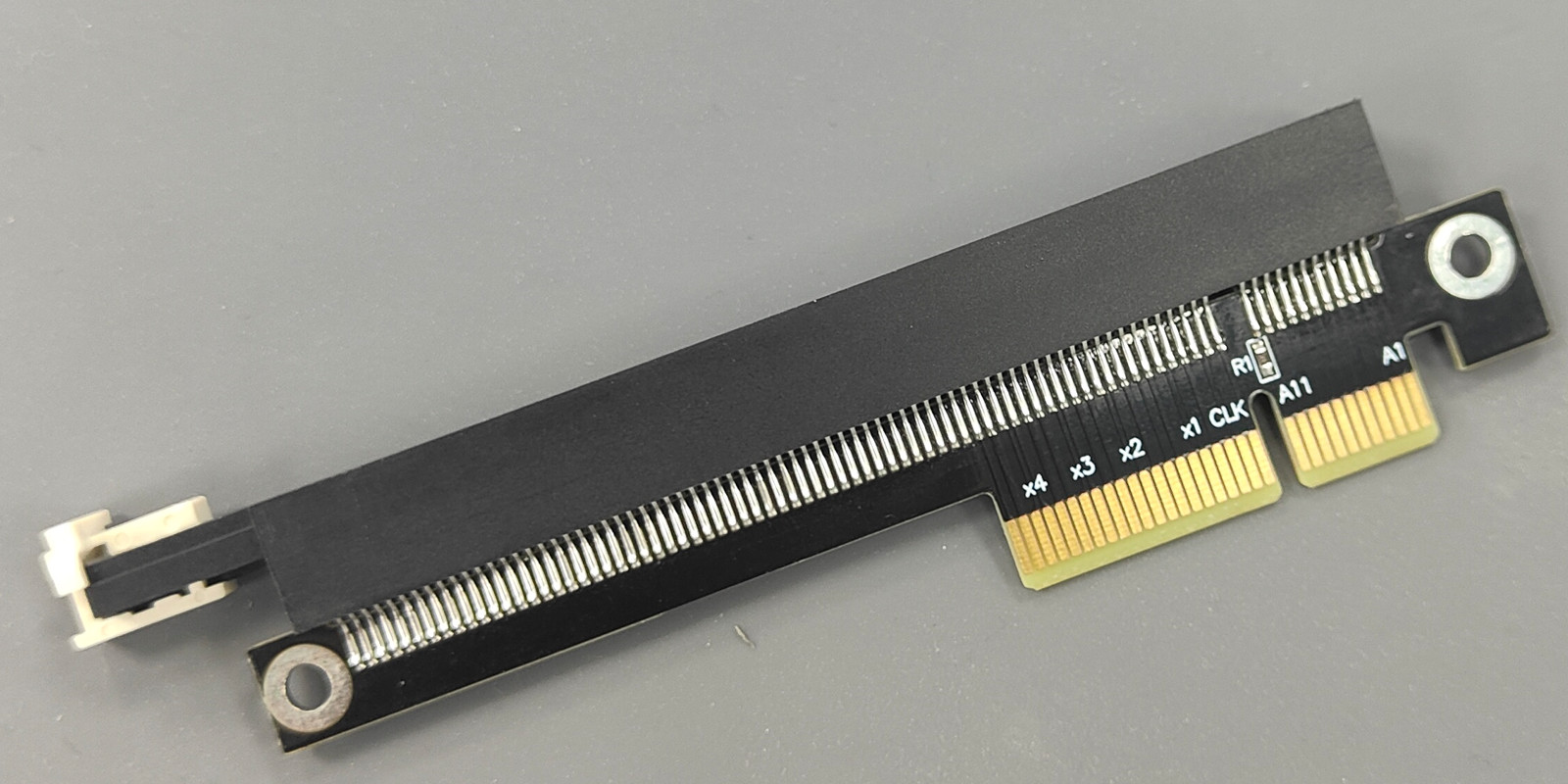

ADT custom connector is independently designed by our store, with white short sliding buckle, the picture is as follows:


Download:

To open 3D PDF files. Please use Adobe Reader DC software.

FTP: Los Angeles

DWG dimension & 3D model files download http://www.adt.link/download/ADT_Riser_Card.zip

FTP: Hong Kong

DWG dimension & 3D model files download http://www.adtlink.cn/download/ADT_Riser_Card.zip


http://www.adt.link/product/R33A-Shop.html
