K11SF-BK,K11SL-BK,K11SR-BK,K11SL-TL

Product name:PCIe 5.0 x1 extension cable

Product model:K11SF-BK,K11SL-BK,K11SR-BK,K11SL-TL

Transferspeed:PCIe 5.0 x1,32G/bps (Max.)

Application: PCIe x1 Capture Card , RAID SSD, LAN, USB cards, extension

Product description: ADT-Link PCI express 5.0 x1 Extension Riser Cable

Buy Now

ADT-Link PCI express 5.0 x1 to x1 Extension Riser Cable

Brand name: ADT-LINK

Product name: PCIe 5.0 x1 to x1 extension cable

Product model:K11SF-BK,K11SL-BK,K11SR-BK,K11SL-TL

Transferspeed:PCIe 5.0 x1 , 32G/bps (Max.)

Wire length:5 ~ 100 cm, the length can be customized

Application: PCIe x1 Capture Card , RAID SSD, LAN, USB cards, extension

ADT K11 5.0 series Part-Number Description:

Part-Number	Description	Bandwidth

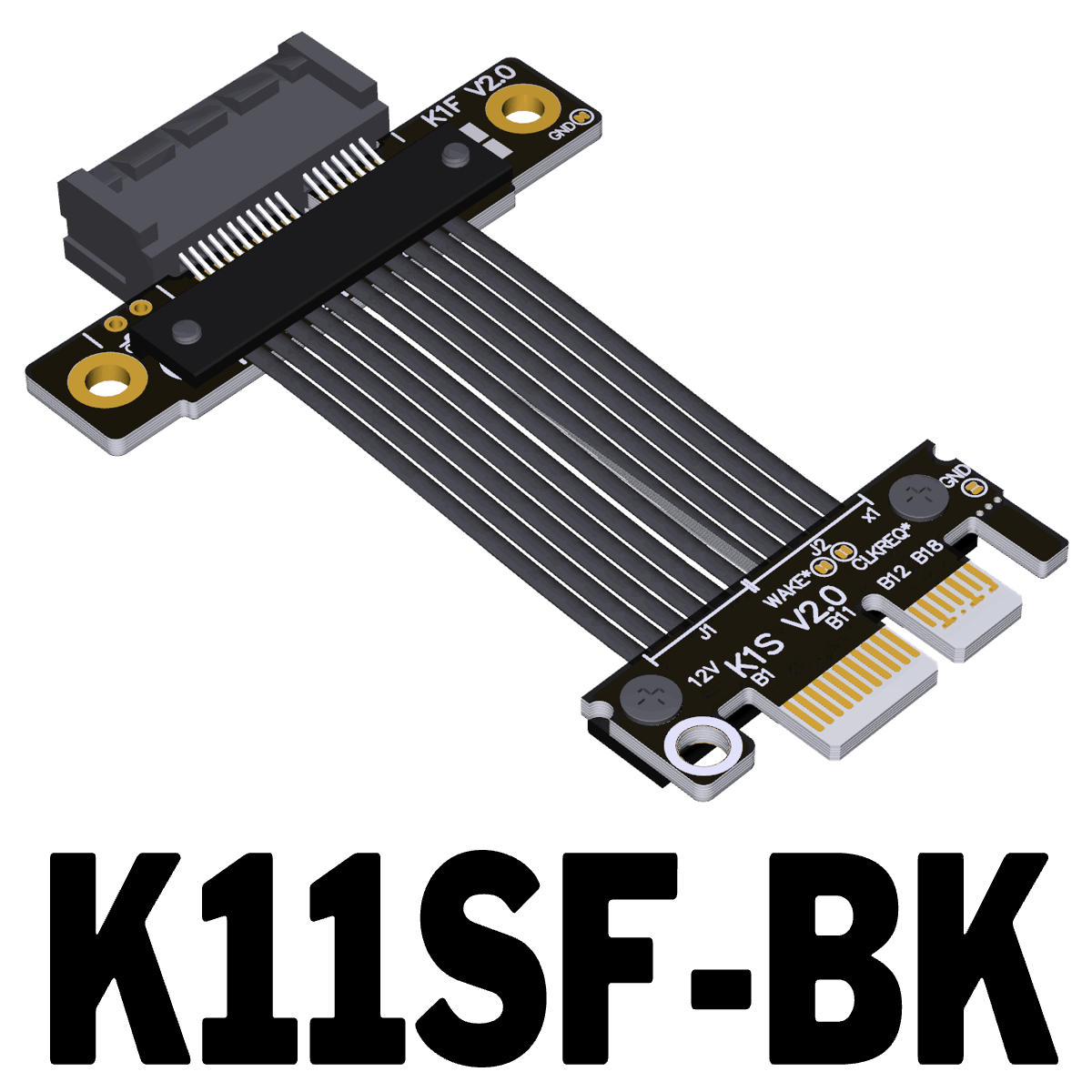

K11SF-BK	PCI-E x1 to x1 turn 180° splint vertical extension cables	PCIe 5.0 x1 (32G/bps)

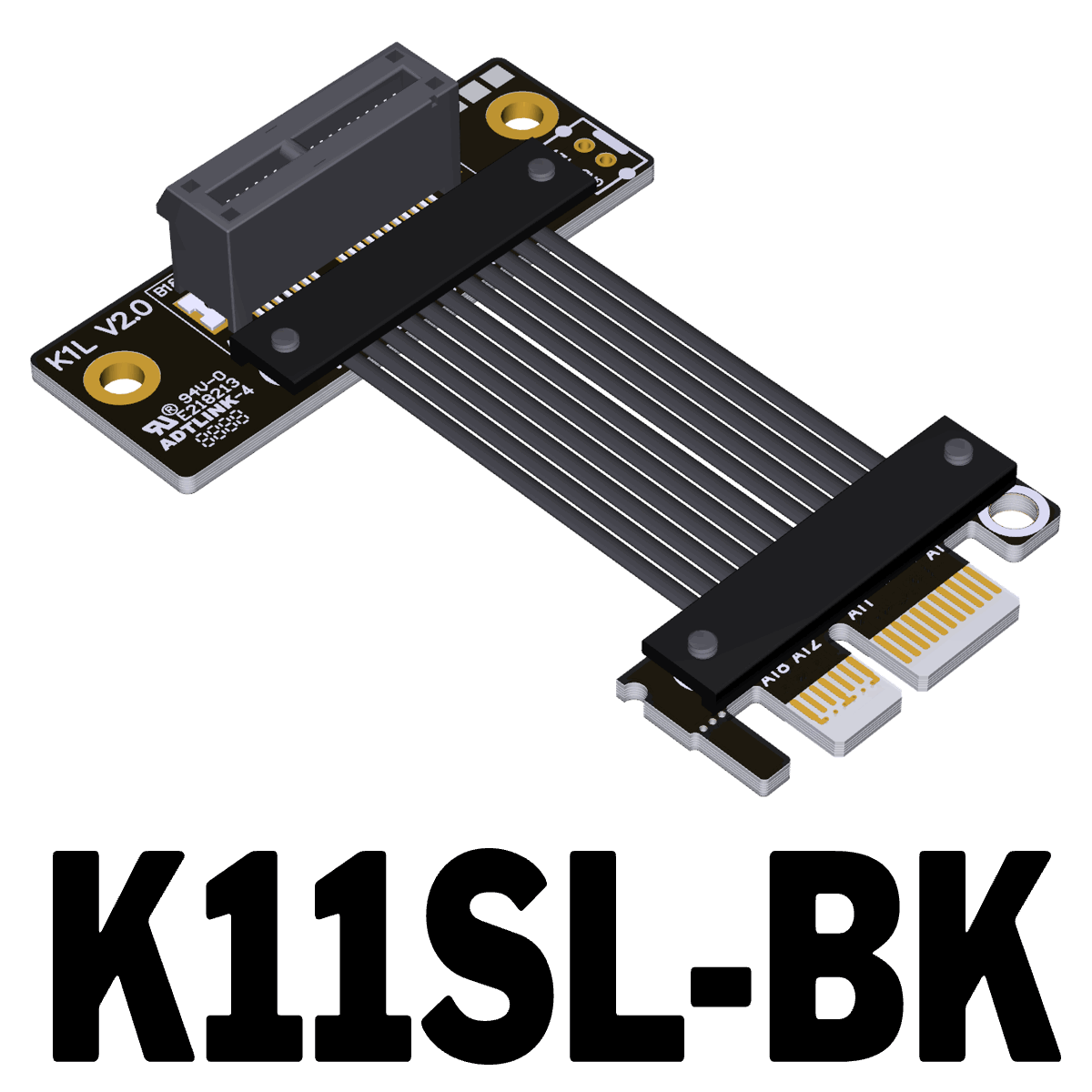

K11SL-BK	PCI-E x1 to x1 turn 90 degree upright right angle extension cables	PCIe 5.0 x1 (32G/bps)

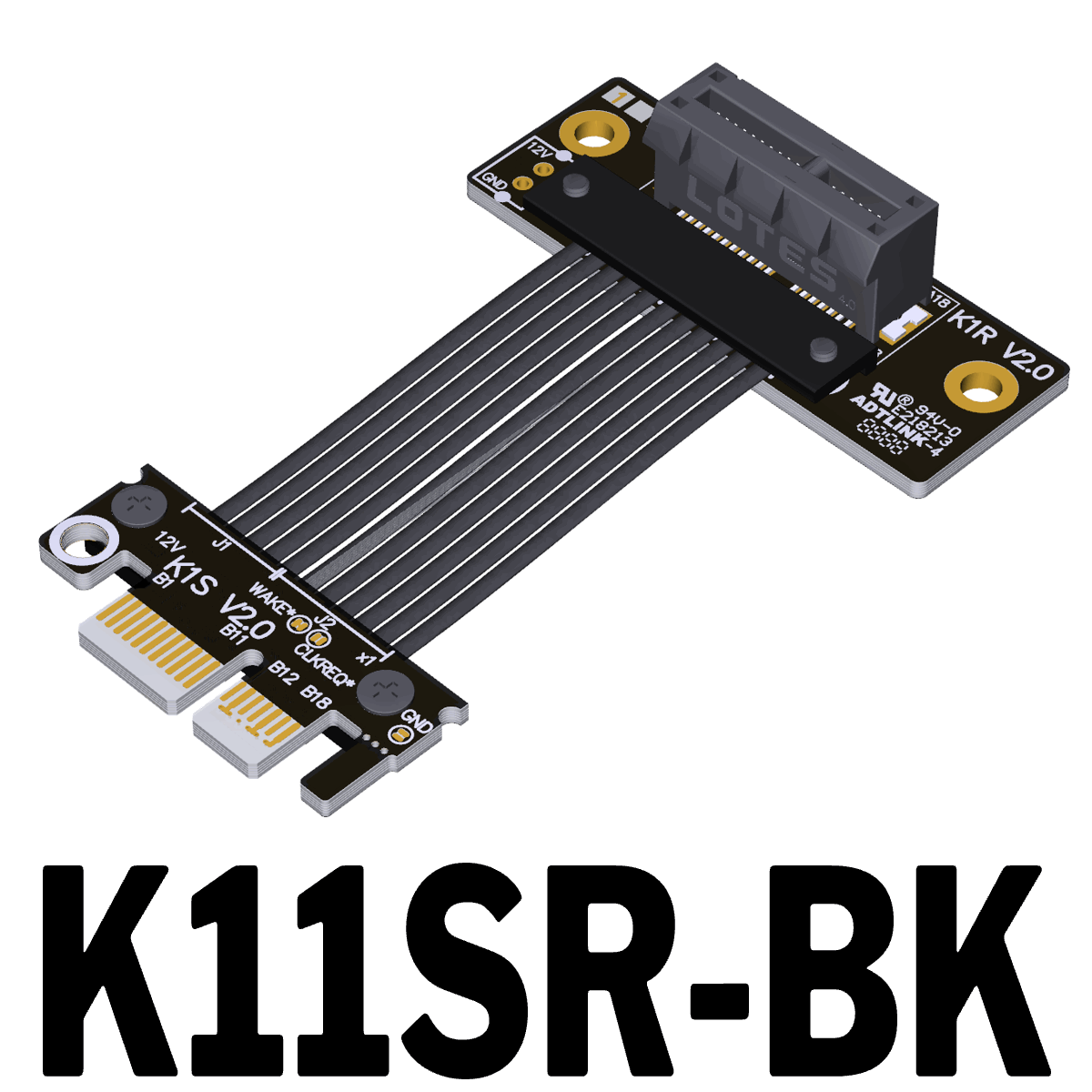

K11SR-BK	PCI-E x1 to x1 turn 270 degree inverted reverse extension cables	PCIe 5.0 x1 (32G/bps)
K11SL-TL-BK	PCI-E x1 to x1 turn 90 degree dual right upright angle extension cables	PCIe 5.0 x1 (32G/bps)

Cable length Description:

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Q&A

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
