R45SF R45SL 4.0

Product ID：R45SF 4.0 ; R45SL 4.0

Interface: M.2 NVMe / M.2 WiFi

Application: Extension

Product description: M.2 WiFi to NVMe extender
ADT-Link M.2 NVMe to M.2 WiFi

Buy Now

ADT-Link M.2 NVMe to M.2 WiFi Extension Cable

Brand name: ADT-LINK

Product name: M.2 NVME key M to M.2 WIFI key A.E extension cable

Product model: R45SF

Transfer speed: PCIe4.0 x1 , 16G/bps (Max.)

Wire length: 5 ~ 100 cm, the length can be customized,

Application: M.2 WiFi card to M.2 NVMe slot

Usage restrictions: PCIe 4.0 has high requirements on the equipment. As long as the extension cable is connected, the signal will be attenuated. This product does not guarantee the full speed of PCI-E 4.0. The equipment is aging. If the signal is poor or the environment is not good, please slow down to PCIe 3.0 or lower.

Cable length Description:

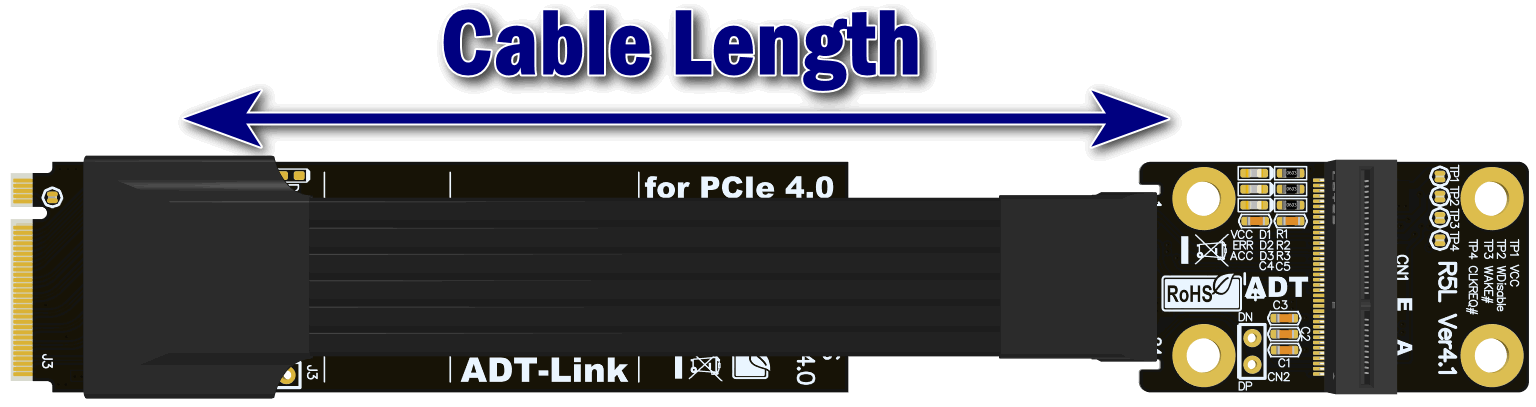

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm blue arrow in the figure below.

Part-Number Description:

Part-Number	Description	Bandwidth (Max.)
R45SF 4.0	M.2 key-M NVMe to M.2 key-E WiFi connector turn 180 degree splint vertical extension cables	PCIe 4.0 x1 (16G/bps)
R45SL 4.0	M.2 key-M NVMe to PM.2 key-E WiFi connector turn 90 degree splint vertical extension cables	PCIe 4.0 x1 (16G/bps)

Q&A:

Is there any EMI shielding for Cable?

With metal shield. The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.
