R85SF

Product ID: R85SF

Interface: PCIe x8 / M.2 WiFi

Application: Extension

Product description: PCIe x8 to M.2 WiFi adapter extension cable.

Buy Now

ADT-Link PCI express 3.0 x8 to M.2 WiFi Extension Cable

Brand name: ADT-LINK

Product name: PCIe x8 to M.2 WiFi extension cable

Product model: R85SF

Transfer speed: PCIe3.0 x1, 8G/bps (Max.)

Wire length: 3 ~ 100 cm, the length can be customized

Application: M.2 WiFi card to PCIe x8 slot extension cable

ADT R85 series Part-Number Description:

P/N	Description	Bandwidth
R85SF	PCI-E x8 edge to M.2 key A.E. WiFi connector extension cables	PCIe 3.0 x1 (8G/bps)

Cable length Description:

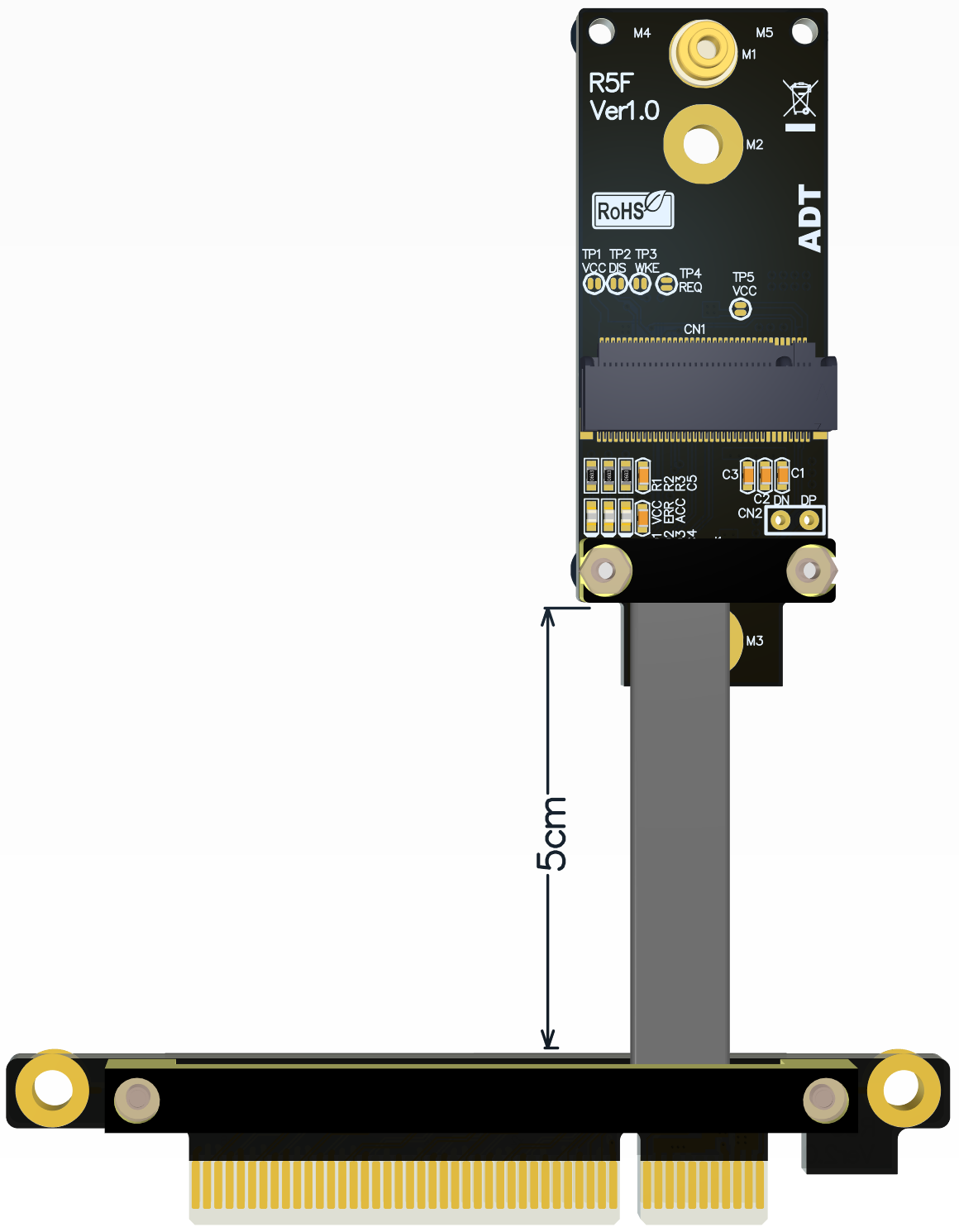

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm arrow in the figure below.

Q&A:

Is there any EMI shielding for Cable?

What is the thickness of the cable? Is it soft? Can it be bent?
The thickness of the cable wire is 1.4mm, so the wire is softer. The wire can be bent or folded, but do not pull it.
